An Aluminum 2-Element Moxon Rectangle

L. B. Cebik, W4RNL

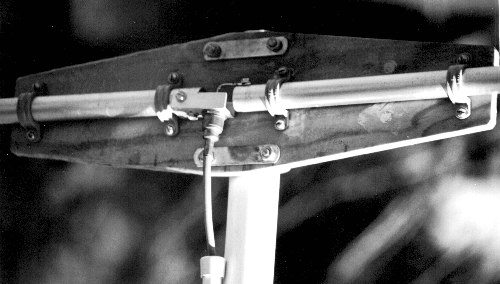

A close-up view of the test model feedpoint assembly and element mounting scheme. The PVC half-clamps should be replaced every 2-3 years before they grow brittle (about 4-5 years average in my climate in East Tennessee). The rear of the female coax connector and the coax junction should be weather sealed if the antenna is to be used for a permanent installation.
