UR5LCV’s YAGI for Hams

ANTENTOP- 01- 2004, # 005	UR5LCV’s YAGI for Hams 6-el YAGI for 21-MHz

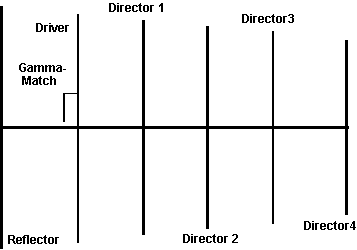

6-el YAGI for 21-MHz F, MHz 21.0 21.175 21.35 G, dBd 9.46 9.63 9.62 F/B, dB 20.24 31.15 20.33 Z, Ohm 27.6-j8.3 23.8+j0.0 20.3+j13.7 SWR 1:1.65 1:1.16 1:1.64   OD 25-mm Reflector Driver Director 1 Director 2 Director 3 Director 4 Length, cm 713 673 647 645 643 625 Spacing to Reflector, cm 0 218 413 658 1045 1450

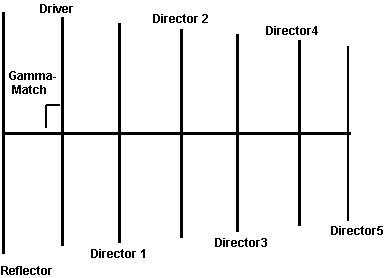

7-el YAGI for 21-MHz F, MHz 21.0 21.175 21.35 G, dBd 9.98 10.1 10.21 F/B, dB 23.61 24.14 20.00 Z, Ohm 29.5-j8.3 29.6+j0.1 30.7+j8.0 SWR 1:1.33 1:1 1:1.64   OD 25-mm Reflector Driver Director 1 Director 2 Director 3 Director 4 Director 5 Length, cm 695 674 649 638 630 626 607 Spacing to Reflector, cm 0 275 466 725 1043 1417 1798
