UR5LCV’s One Boom YAGI: 3-el. 14-MHz & 4-el.

ANTENTOP- 01- 2004, # 005	UR5LCV’s One Boom YAGI: 3-el. 14-MHz & 4-el.

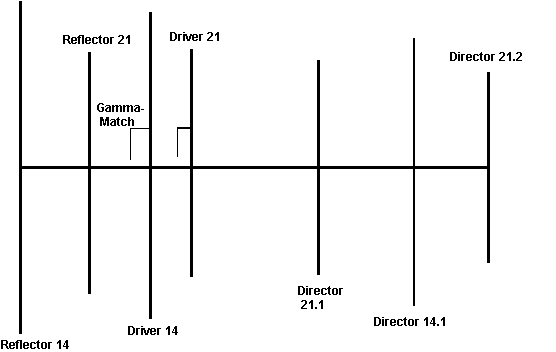

F, MHz 14.0 14.15 14.3 21.0 21.175 21.35 G, dBd 6.2 6.3 5.9 5.9 6.2 6.5 F/B, dB 16.7 20.4 16.8 18.6 19.5 19.8 Z, Ohm 19.5 -j11.9 21.1+j0.8 22.0+j14.0 32.8+j6.0 28.8+j0.2 24.2+j7.5     OD 25-mm Reflector 14 Reflector 21 Driver 14 Driver 21 Director 21.1 Director 14.1 Director 21.2 Length, cm 1054 780 1012 688 656 943 631 Spacing to Reflector 14, cm 0 200 282 380 575 725 830
