A Helical Loop Antenna for the 20-meters Band

ANTENTOP- 01- 2004, # 005	Top Load at Vertical Antennas

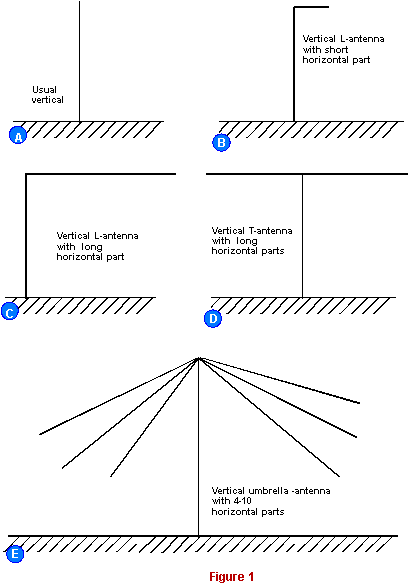

Kind of an antenna K Simple vertical Figure 1a 4 Inverted L with short horizontal part Figure 1b 4.5-5 Inverted L with long horizontal part Figure 1c 5-6 T- antenna with long horizontal part Figure 1d 6-8 Umbrella antenna with 4-8 wires Figure 1e 6-10
