BA- Butterfly Antenna

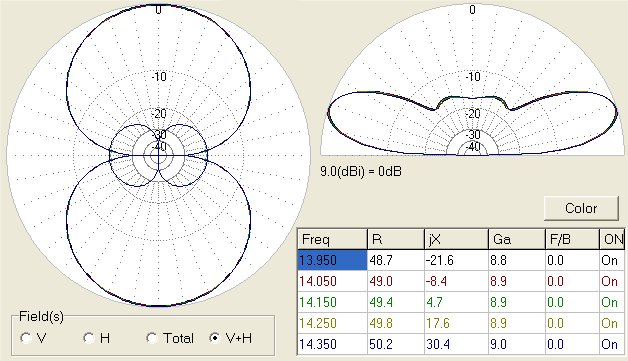

Figure 6 shows the diagram directivity of the antenna at its height 7 meters over real ground.Mostly horizontal polarization is at the installation. Figure 7 shows the SWR the antenna at its height 7 meters

over real ground.



Figure 8 shows input impedance the antenna at its height 7 meters over real ground. The plots were taken with help of MMANA (Reference 2).



Figure 6 Diagram Directivity of the Antenna at Its Height 7 meters Over Real Ground

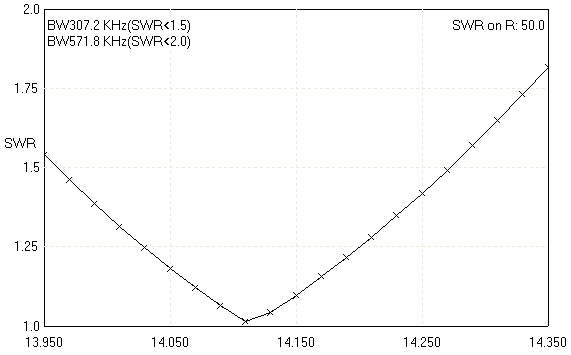

Figure 7 SWR the Antenna Its Height 7 meters Over Real Ground
