Expedition Two Element Antenna for the 20-meter Band: By: N. Filenko, UA9XBI

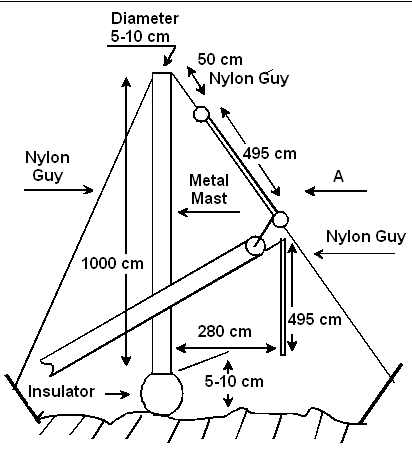

The antenna was designed for using at DX- peditions. Antenna consists of two elements- mast in height 10 meters and in diameter 30-50-mm (it is reflector) and a dipole for the 20-m (it is driver).

PDF file, 210 KB (ANTENTOP-01-2008, pp.: 26- 28)

Download PDF File!

HTML Version
