Narrow DEWD Dipole for the 80- meters





The publication is devoted to the memory of UR0GT.







By: Nikolay Kudryavchenko, UR0GT



It is a variant of a Narrow DEWD Dipole (distance between wires- 10- cm) with four equal wires (each wire is in 19.0- meter long). However, the antenna has enough good parameters compare to usual DEWD antennas (that were described at Antentop-01- 2009).



The MMANA model of the antenna may be loaded:



http: // www.antentop.org/012/narrow_dewd_012.htm

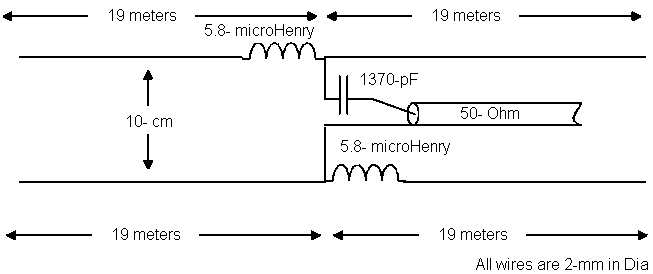

Figure 1 Design of the Narrow DEWD Dipole

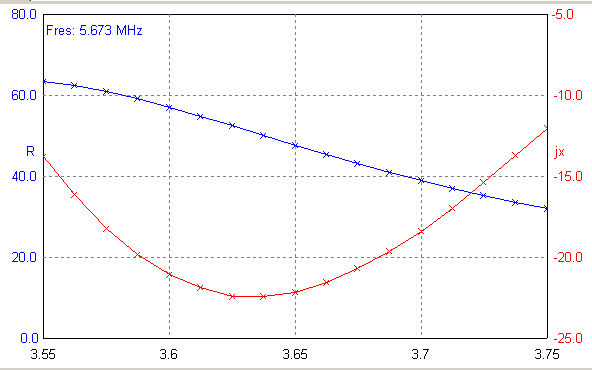

Figure 2 Z of the Narrow DEWD Dipole (20- m above the real ground)
