ANTENTOP- 01- 2010, # 012

Dipole Antenna for the 80- meters

With Rectangular UR0GT- Match





The publication is devoted to thr memory of UR0GT.







By: Nikolay Kudryavchenko, UR0GT



It is an alternative way (compare to DEWD) to design a broadband antenna- use original "UR0GT- Match." The match was offered by UR0GT at 2004 at HZ- Forum. The match was used to feed VHF- Antennas, but it works at HF too.



The match may be used at all antenna types- dipoles, verticals, YAGI- either symmetrical or asymmetrical.



The MMANA model of the Dipole Antenna for the 80- meters with rectangular UR0GT- Match may be loaded:

http: // www.antentop.org/012/r_ur0gt_012.htm

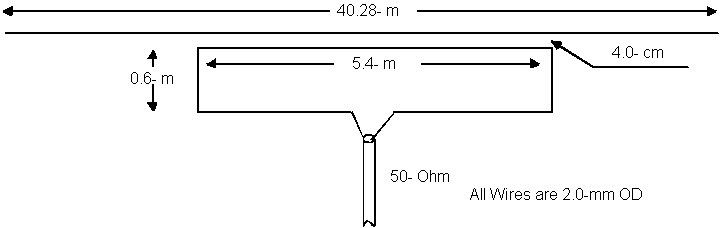

Figure 1 Design of the Dipole Antenna for the 80- meters with rectangular UR0GT- Match

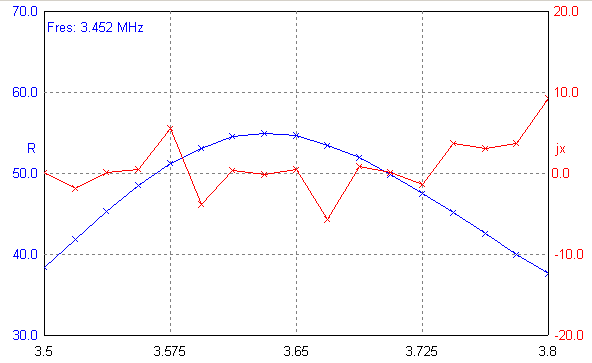

Figure 2 Z of the Dipole Antenna for the 80- meters with rectangular UR0GT- Match

(30- m above the real ground)
