Simple Three Bands Regenerative Receiver

Custom Search



ANTENTOP- 01- 2013 # 017

Simple Three Bands Regenerative Receiver





L3 should have 15- micro Henry. This one contains 14- turns of the enamel wire in diameter 0.8- mm (20- AWG). Winding is turn to turn. L2 should have 15- micro Henry. The inductor contains 40- turns of the enamel wire in diameter 0.3- mm (29- AWG). Winding spread in 1-1/2 layer. L1 has 160- micro Henry of inductance. It was used ready- made surplus inductor. As I have noticed the schematic works with practically any inductors. At first I would like to make the inductors on one form but later I gave up the idea because I cannot trim the inductance.



It is used a variable capacitor (unknown made) with build- in vernier. Loudspeaker is used from an old phone base SENAO. Switches S1 and S2 is a three- positions toggle switch. VT1, VT2, VT3 are small power transistors. Gain is not less the 100. F is not less the 100- MHz.



You may hear the Three Bands Regenerative Receiver at YOUTUBE.







File name: ua6aak regen 3 band



http://www.youtube.com/watch?v=6wpXTIuKPpo

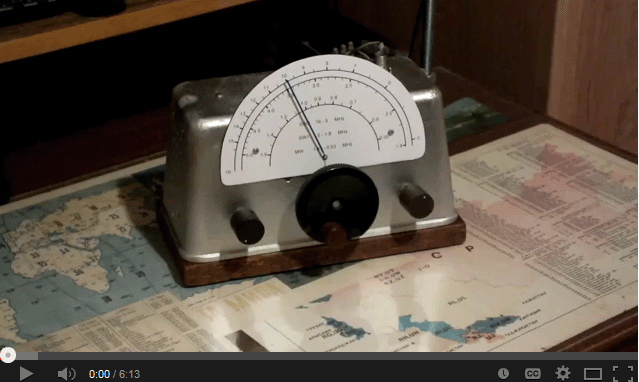

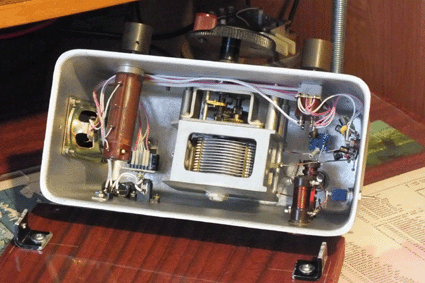

Figure 2 View of the Three Bands Regenerative Receiver









www.cqham.ru









www.antentop.org

Page- 86
