Horizontal Antenna with Vertical Polarization for the 2- meter Band











Vasiliy Oleynik, RW4HX





At my vacation I guested my friends at their cottage near 40-km from the city. On the second day I decided to try my FT51. Oops, nobody can copy me when I transmitted on to the transceiver's rubber duck. So I need an antenna that could take the 40 km.

Experimenters with cottage- brew YAGI and Twin Loop antenna was failed. However I newer give up.

I found at the cottage:



10 meter aluminum wire in 4-mm diameter;

4 meters RG58 with connector for my transceiver;

An old TV- antenna- most valuable thing there was a broadband transformer 1:4.

Figure 1 shows antenna what I made from the stuff. Antenna was fastened by nails to wooden strip. The strip was placed under the cottage roof. It is a classical Chireix antenna that does not require strictly tuning and has broadband passband.



The antenna is exceeded all my expectations. Antenna provided very good communication at radius 40- 45- km also I could open two repeaters at distance more the 50- km.





The MMANA file of the Horizontal Antenna with Vertical Polarization for the 2- meter Band may be loaded: http: //

www.antentop.org/018/rw4hx_018.htm



Figure 2 shows impedance of the antenna (antenna placed at 7- meter above the real ground). Figure 3 shows SWR of the antenna (antenna placed at 7- meter above the real ground). Figure 4 shows DD of the antenna (antenna placed at 7- meter above the real ground).



UR0GT is noticed, that the antenna would work fine at 10- meter Band. However at the band the antenna has input impedance near 50- Ohm. So, to do the antenna dual band a special ATU is needed. The Atu should work as transformer 1:4 at the 2- meter and as straight line at 10 meter.



Figure 5 shows impedance of the antenna (antenna placed at 7- meter above the real ground). Figure 6 shows SWR of the antenna (antenna placed at 7- meter above the real ground). Figure 7 shows DD of the antenna (antenna placed at 7- meter above the real ground).



Credit Line: www.cqham.ru

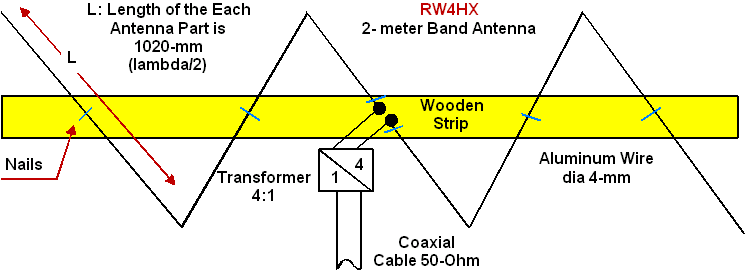

Figure 1 Horizontal Antenna with Vertical Polarization for the 2- meter Band
