ANTENTOP- 01- 2013 # 017

Tube Socket from Surplus VHF Resonator











Robert Akopov, UN7RX

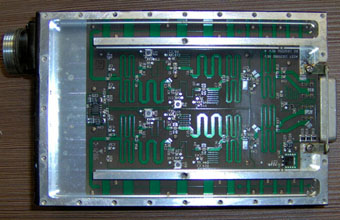

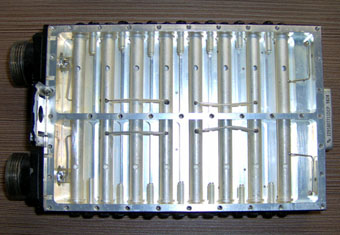

It was used surplus VHF device. VHF resonators were at bottom side,

at the front side there was a board with VHF circuit. The resonators made from silvered bronze.

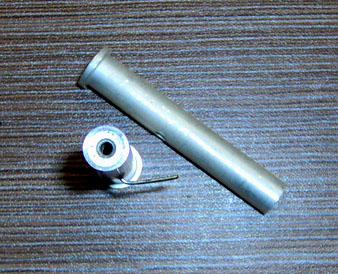

Resonators were removed. Then central hole was drilled to diameter of the tube's pin.

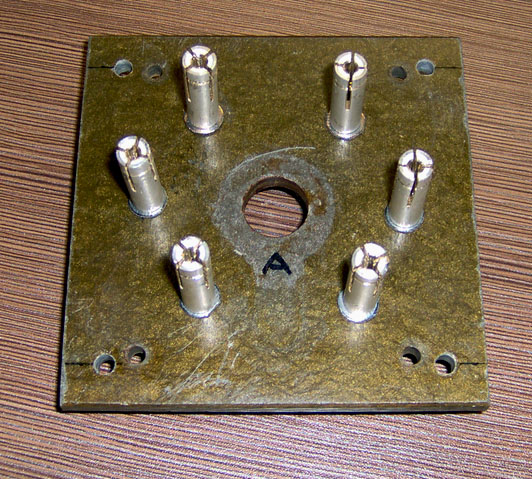

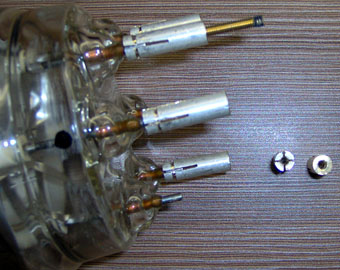

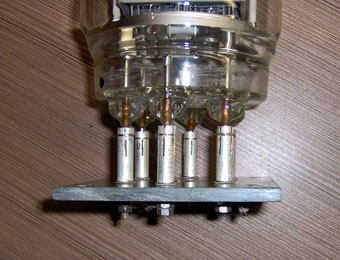

Cylinders were turn on to collet. Tube's pins were polished to smooth inserting into the holders.
