Special page devoted to

Simple Four Tube DC Receiver for the 80- meter Band

ANTENTOP- 01- 2016 # 020		Simple Four Tube DC Receiver for the 80- meter Band

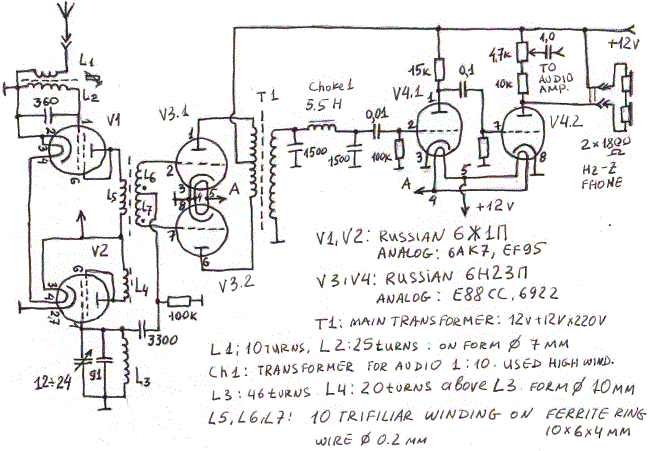

Schematic of the Simple Four Tube DC Receiver for the 80- meter Band
www.cqham.ru
www.antentop.org		Page- 74
