Special page devoted to

Modified T2FD Antenna

Modified T2FD Antenna: by: Vadim Litvikh, RK1AC

The antenna is a variant of well- known T2FD antenna. This modified antenna have been working at my ham station for decade years and showed itself as low noise antenna that works from 1.8- MHz to 30- MHz, does not required ATU, easy to repeat, allows to receive weak DX- stations (especially on low HF- Bands), does not receive static interferences and has lots other advantages…



PDF file, 130 KB (ANTENTOP-01-2018, p.: 26)

Download PDF File!

HTML Version

Contents for AntenTop 01- 2018

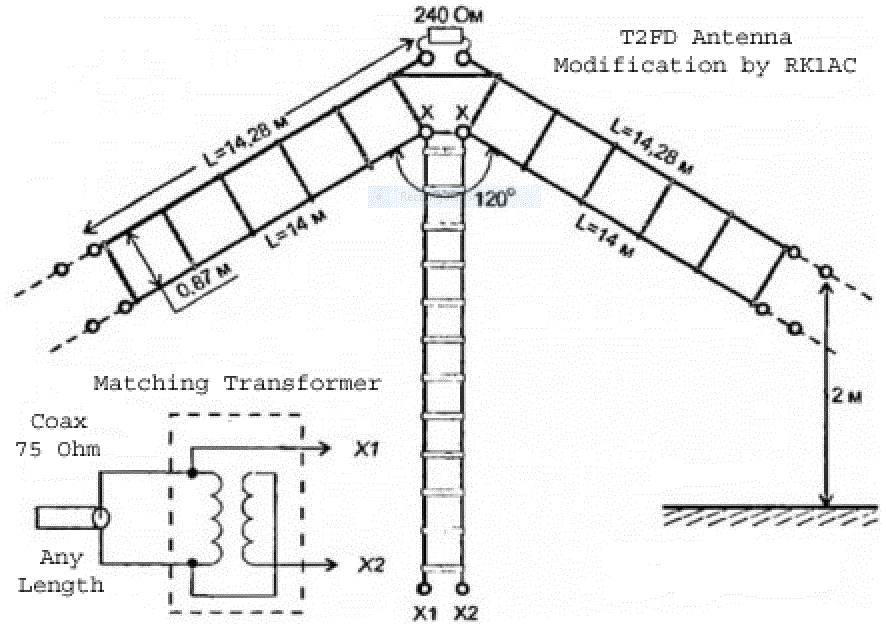

Design of the modified T2FD Antenna
