4- Element YAGI Antenna for the
20- meter Band
The publication is devoted to the memory of UR0GT. |
|
|
|
|
|
Credit Line: Forum from: www.cqham.ru
|
By: Nikolay
Kudryavchenko, UR0GT |
|
The simple 4- Element YAGI Antenna for the 20- meter Band has
very stable parameters. Antenna has SWR less the 1.1:1 at 14.0-
14.35- MHz. Antenna has input impedance 50 Ohm. The
antenna may be made of aluminum tube in diameter of 30- mm. Antenna
has high gain, and very easy for tuning. Design of the 4- Element YAGI Antenna for the 20- meter Band is shown on
Figure 1.
|
Figure 2 shows Z of the 4- Element
YAGI Antenna for the 20- meter Band. Figure 3 shows SWR of the 4- Element
YAGI Antenna for the 20- meter Band. Figure
4 shows DD of the 4-
Element YAGI Antenna for the 20- meter Band. Antenna was placed
(in the MMANA) at 18 meter above a real ground. 73! Nick, UR0GT |
|
The MMANA model of the 3- Element Broadband Antenna
for the 145- MHz Band
may be loaded: http: // www.antentop.org/022/yagi_ur0gt_022.htm |
|
|

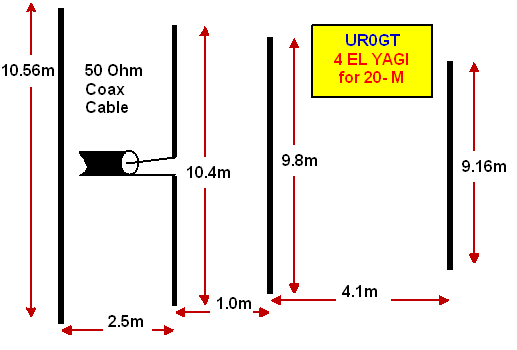

Figure 1 4- Element
YAGI Antenna for the 20- meter Band |
|
|
|
|
 |
|
|
|
|
|
|
Page- 32 |
