5 Element Antenna for the 50- MHz Band

5 Element Antenna for the 50- MHz Band

By: Yuriy Skutelis, RN3DEK

Credit Line: Forum at cqham.ru

There is presented 5 elements directional antenna for the 50- MHz Band. Antenna has good SWR at the band and excellent F/B ratio.

Antenna has 50- Ohm input impedance that allows feed the antenna directly by 50- Ohm coaxial cable. Figure 1 shows schematic of the antenna. Antenna elements made of tube in diameter of 16- mm. Folded elements of the reflector made of tube/rod in diameter of 8- mm. The elements are inserted into main reflector as it shown in Figure 2. Dimensions are given in millimeter

The antenna has reflector with bent ends. It is done to improve F/B ratio. Anyway you may play with model of the antenna in MMANA and check what you could reach.

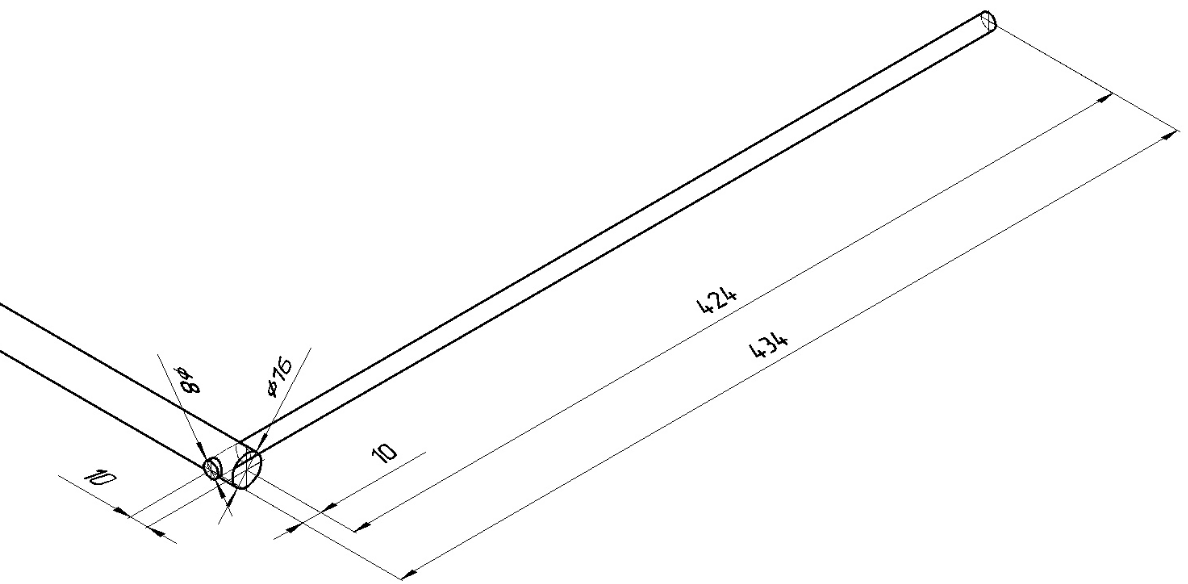

Figure 2

Folded Element inserted in Antenna reflector

Figure 3 shows Z of the antenna. Figure 4 shows SWR of the antenna. Figure 5 shows DD of the antenna.

73! RN3DEK

MMANA File of the 5 Element Antenna for the 50- MHz Band may be downloaded at:

http://www.antentop.org/022/5_el_50mhz _022.htm

Figure 1

5 Element Antenna for the 50- MHz Band
