ANTENTOP- 01- 2019, # 023

RV9CX Inverted L Antenna

for 160 and 80- meter Band



RV9CX Inverted L Antenna

for 160 and 80- meter Band





By: Dmitry Avdeyev, RV9CX





The antenna is very simple and can work on 160 and 80- meter Band. Figure 1 shows design of the antenna. Figure 2 shows SWR the antenna on 160 meter band.

Figure 3 shows SWR the antenna on 80 meter band. Figure 4 shows DD the antenna on 160 meter band. Figure 5 shows DD the antenna on 80 meter band.

73! de RV9CX



MMANA file for the antenna may be downloaded at http://www.antentop.org/023/RV9CX_023.htm

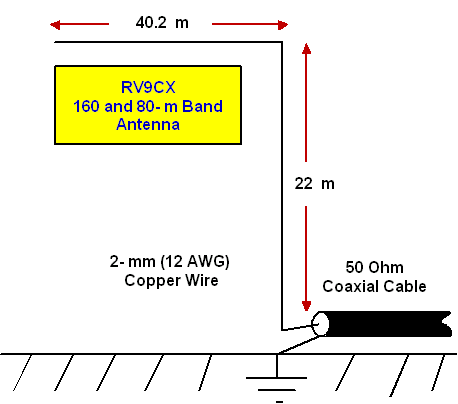

Figure 1 Design of the RV9CX Inverted L Antenna for 160 and 80- meter Band





Figure 2 SWR the antenna on 160 meter band
