UR0GT Super- J Antenna for the 438 MHz |
|
|
|

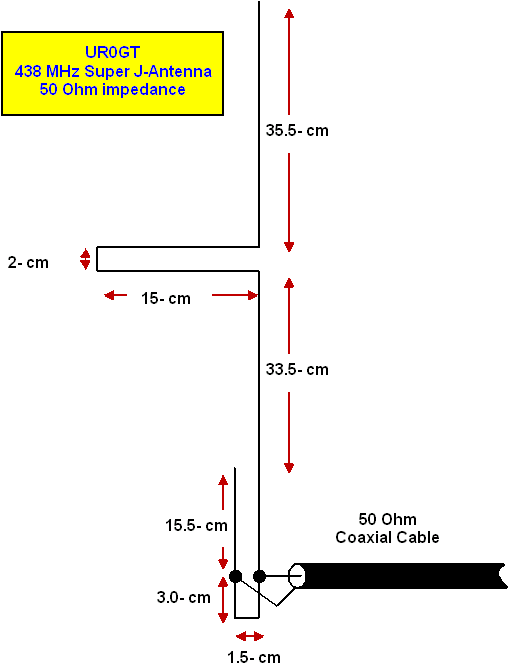

Design of Super- J Antenna for the 438 MHz with 50 Ohm input impedance is shown
in Figure
5.
|
Figure 6 shows Z
of the UR0GT Super- J Antenna for the 438 MHz with 50 Ohm
input impedance. Figure 7 shows SWR
of the UR0GT Super- J Antenna for the 438 MHz with 50 Ohm
input impedance. Figure 8 shows DD of the UR0GT
Super- J Antenna for the 438 MHz with 50 Ohm input impedance |
 Figure 5 UR0GT Super-
J Antenna for the 438 MHz with 50 Ohm Input Impedance |
|
|
The MMANA model of the UR0GT Super- J Antenna for the
438 MHz with 50 Ohm Input Impedance
may be loaded: http: // www.antentop.org/023/UR0GT_023.htm |
|
|
|
|
|
|
