5- Element YAGI Antenna for the 20- meter Band

5- Element YAGI Antenna for the

20- meter Band



The publication is devoted to the memory of UR0GT.



Credit Line: Forum from:

www.cqham.ru

By: Nikolay Kudryavchenko, UR0GT





The 5- Element YAGI Antenna for the 20- meter Band has very stable parameters. Antenna has SWR less the 1.5:1 at 14.0- 14.35- MHz. Antenna has input impedance 50 Ohm. Reflector of the antenna may be made from wire in diameter 2- mm. Model of the antenna made with tapered elements.

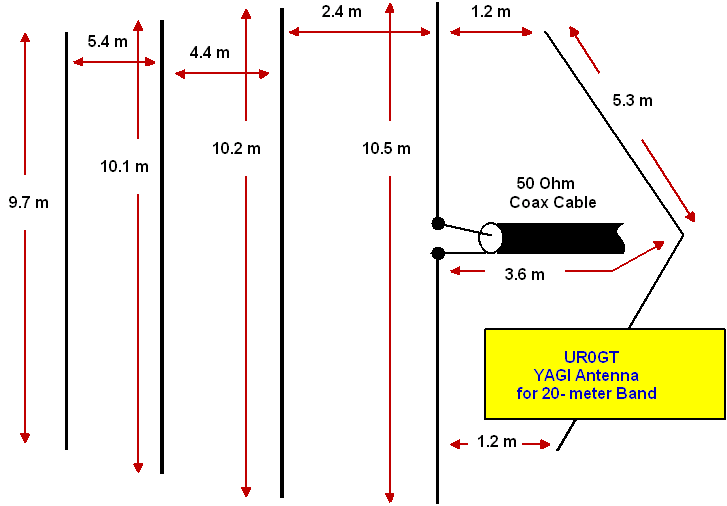

Design of the 5- Element YAGI Antenna for the 20- meter Band is shown on Figure 1.





Figure 2 shows Z of the 5- Element YAGI Antenna for the 20- meter Band. Figure 3 shows SWR of the 5- Element YAGI Antenna for the 20- meter Band. Figure 4 shows DD of the 5- Element YAGI Antenna for the 20- meter Band. Antenna was placed (in the MMANA) at 23 meter above a real ground.



73! Nick, UR0GT



The MMANA model of the 5- Element YAGI antenna for the 20- meter Band may be loaded at: http: //

www.antentop.org/025/yagi_ur0gt_025.htm
