Four
One Band Antennas on One Mast |
|
Four One Band Antennas
on One Mast |
|
|
|
By: Sergey Popov, RZ9CJ |
|
|
|
|
|
Credit Line: www. qrz-e.ru |
|
|
|
|
It is possible place four one band
antennas for 7, 14, 21 and 28- MHz on one 10- meter mast. Figure 1
shows that design. The antennas may be made from 1..
2- mm wire. Instead of the mast may serve
a tree or ever wall of the house. |
This design allows easy to
reverse the direction of the 2EL YAGI- just reverse the ends.
As well it is possible change the direction when the YAGI is turned
around of the mast. 73! de RZ9CJ |
|
|
|
|

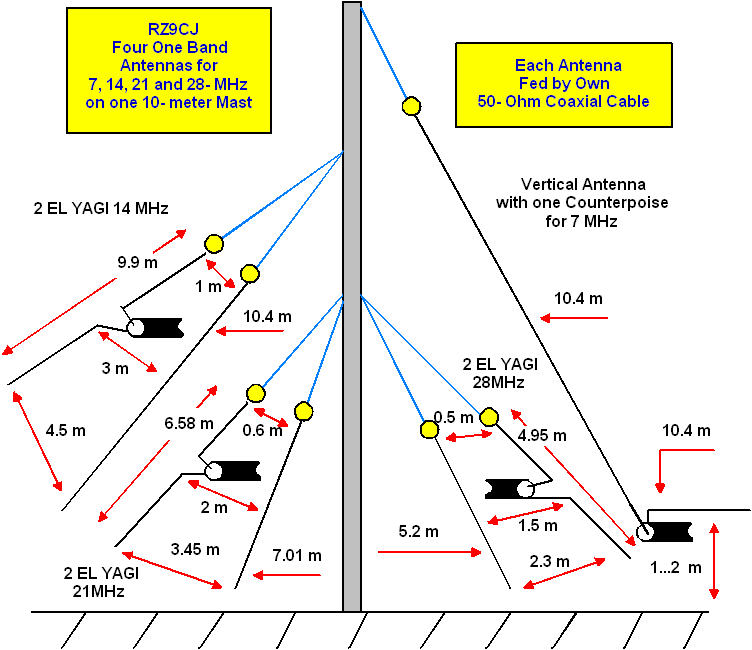

Figure
1 Four One Band Antennas for 7, 14, 21 and 28- MHz on
One 10- Meter Mast |
|
|
|
|
|
|
