Collinear Antenna for 432- MHz Band
Custom Search
|
ANTENTOP-
01- 2021, # 025 |
Collinear Antenna for 432- MHz Band |
|
Collinear
Antenna for 432- MHz Band The publication is devoted to the memory
UR0GT. |
|
|
|
|
|
Credit Line: Forum from: www.cqham.ru
|
By: Nikolay
Kudryavchenko, UR0GT |
|
The simple collinear antenna may be made from a length
of aluminum tube, copper tube or just a thick wire. You need a
130- cm length for antenna and 70 cm length for four counterpoises.
Despite of simplicity of the design the antenna has very good
parameters. Figure
1 shows design of the antenna. MMANA file below allows you play with the antenna with
conditions on your location. |
Figure 2 shows Z of the Collinear Antenna
for 432- MHz Band. Figure 3 shows SWR of the Collinear
Antenna for 432- MHz Band. Figure 4 shows DD of the Collinear
Antenna for 432- MHz Band. 73! de UR0GT |
|
The MMANA file of the collinear Antenna for 432 - MHz
Band may be downloaded at: http: // www.antentop.org/025/ur0gt_collinear_025.htm |
|
|

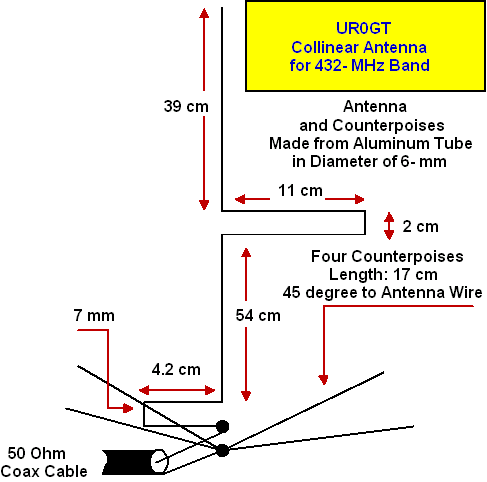

Figure 1 Collinear
Antenna for 432- MHz Band |
|
|
|
|
|
|
