Nonlinear Propagation of Radio- Wave
in Ionosphere
Antentop is FREE e-magazine devoted to Antennas and Amateur Radio an
Special page devoted to
Nonlinear Propagation of Radio- Wave
in Ionosphere
Nonlinear Propagation of Radio- Wave in Ionosphere: by Igor Grigorov, VA3ZNW
There are a lot of interesting phenomena at ionosphere
propagation of radio-wave (for example, remember LDE!). One of such
phenomenon is nonlinear propagation of radio- wave in ionosphere. What
is it this effect? A very exactly description of the phenomenon was
given by Vladislav, RX3ALL, at a message sent by him in the RU- QRP-
C forum on December 19, 2005.
PDF file, 220 KB (ANTENTOP-01-2005, pages: 74- 75)

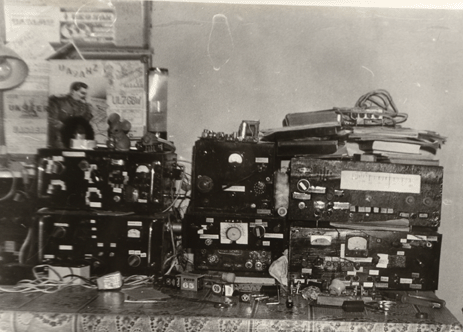

Station UA3ZNW at
middle 1980s.
Left corner: CW Transceiver and
PA for 160, 80, 40, 20
Right corner: PSU 0-16 VDC, 0- 24
VDC, 250- 500 VDC, 6.3 VAC, 12.6 VAC
Receiver for 10 meters
Center: Automatic key, transmitter
for 10 meters, receiver for 160, 80, 40 and 20 meters.
AM transmitter for 160 meters.
All equipment are home brew
