Flat EH- Antenna for 10- MHz in the Winter







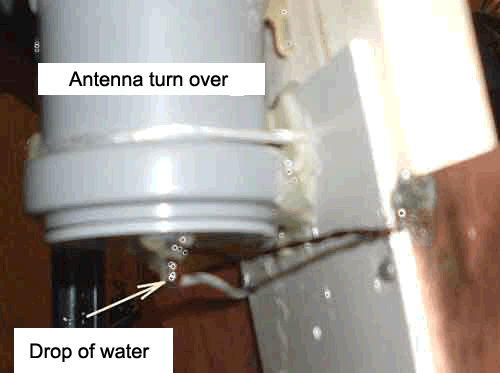

Figure 9 Water is coming from "hermetic" coupling

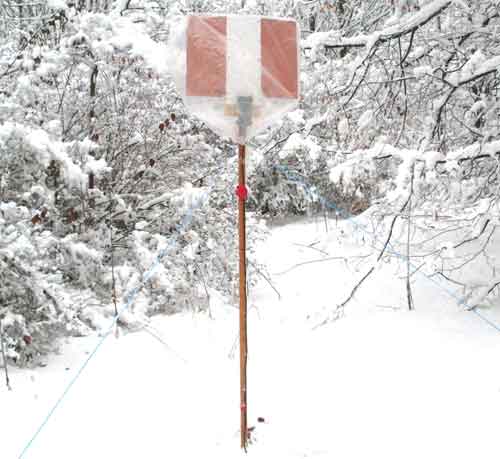

Figure 10 New one Installed Flat- EH- Antenna



I checked the antenna in the Air- working excellent. OK, I will test the antenna further.



Flat EH- Antenna may be tuned on to others bands. Design of the antenna is leaved the same only numbers of coils are changed in the inductor. Table 1 shows the Theoretical Data for the others bands.

73!

Vladimir, UA1ACO

St. Petersburg, November- 2009



Table 1 Theoretical Data of the Inductor for the 7, 10, 14 and 18- MHz Band.



Band



Theoretical Data for Inductor

7 MHz



60 turns

10 MHz



39 turns

14 MHz



24 turns

18 MHz



17 turns
