Vertical Antenna for the 20-, 15-, 10- meter Bands
(Antenna UW4HW)

Vertical Antenna for the 20-, 15-, 10- meter Bands
(Antenna UW4HW): by: Yuri Matiychenko, UW4HW: Credit Line: Radio # 12, 1968, p.:21

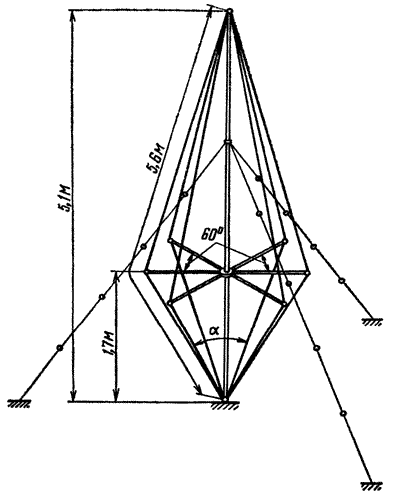

Classical Vertical Antenna (aka Ground Plane Antenna)
without additional tuning works satisfactory only at one
amateur band. However, so called “thick” antennas (looks
like three-dimensional geometrical figure) could work with
good SWR in the frequencies range F1/F2= 3, where, F1-
high working frequency, F2- lower working frequency...



PDF file, 170 KB (ANTENTOP-01-2013, pp: 41- 42)

Download PDF File!

HTML Version
