Two Simple Low Pass Filters for 145- MHz Band





Two Simple Low Pass Filters for 145 – MHz Band







Anatoli, RL1L

ex. (RA0C, EY9AF, RA6XPL, RA6PS, RA6PGY)

 Credit Line: Forum at www.cqham.ru





A Low Pass Filter is recommended to use in a Field Day operation when several amateur radios that work at 145 and 430- MHz are placed close to each other. In this case the third harmonic of the 145- MHz radio (when it transmits) may cause interferences for 430- MHz radio.

 Schematic of a simple Low Pass Filter for 145- MHz Band is shown in Figure 1. The filter made on a piece of two sided PCB. Capacitors of the filter are created on the board by the foil. Figure 2 shows design of the filter. Figure 3 shows view of the filter. Figure 4 shows layout of the capacitors.



The capacitors made on a PCB that has thickness in 1.5- mm. However different PCBs depend on the stuff and the thickness may have another capacity per square centimeter. It is very useful to find the capacity per square centimeter and re-calculate (if it should be done) the sizes of the capacitors before the capacitors would be made.

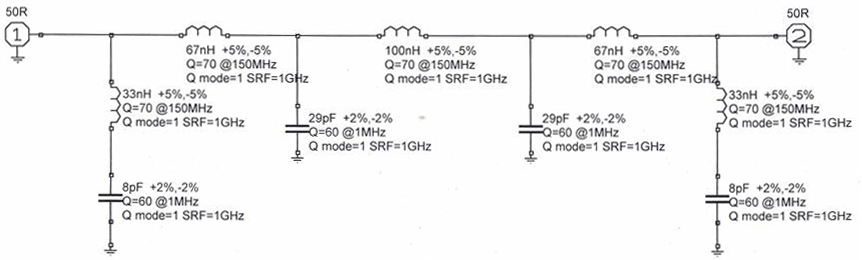

Figure 1 Schematic of a simple Low Pass Filter for 145- MHz Band

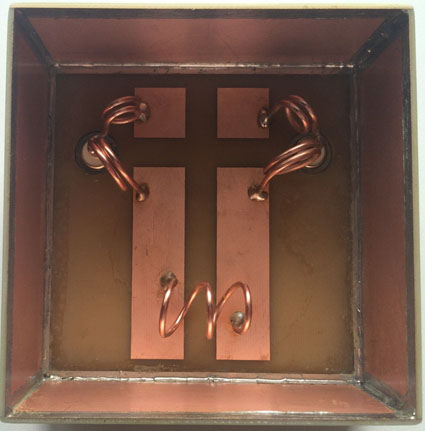

Figure 2 Design of the simple Low Pass Filter for 145- MHz Band

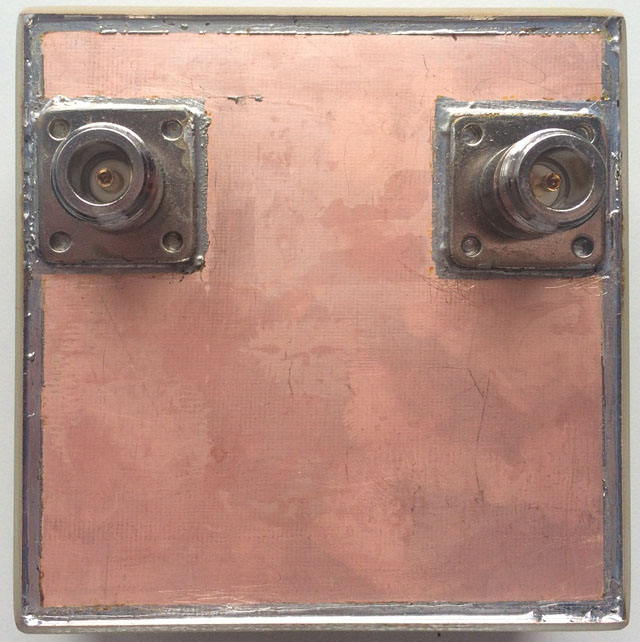

Figure 3 View of the simple Low Pass Filter for 145- MHz Band



www.antentop.org

Page- 74
