Field Universal HF Antenna RV3DA


Antenna RV3DA at 160-m

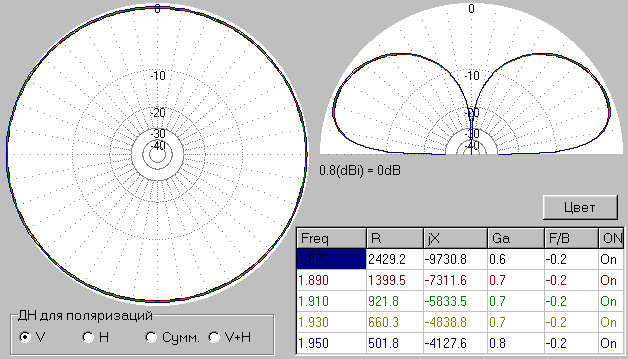

Vertical Radiation Pattern

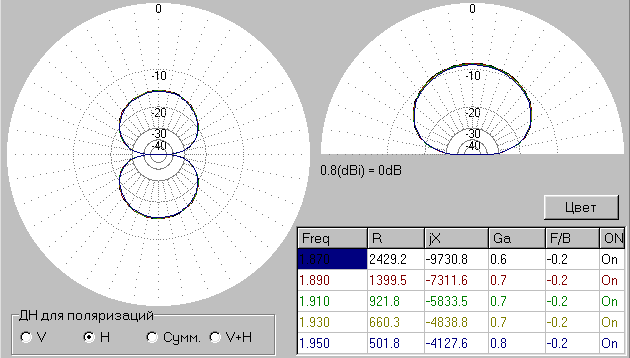

Horizon Radiation Pattern






Comments: Antenna radiates mainly radio waves with vertical polarization. A very good pattern with low lobes in the vertical plane. Circular pattern in horizontal plane. It is fine for DX- QSO. But antenna has Z= 921- j5833-Ohms at 1910-kHz. Not all ATUs do good matching for such load.
