ANTENTOP- 02- 2004, # 006

Field Universal HF Antenna RV3DA


Antenna RV3DA at 30-m

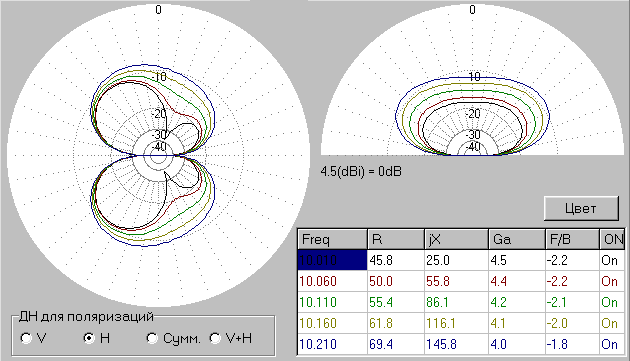

Vertical Radiation Pattern

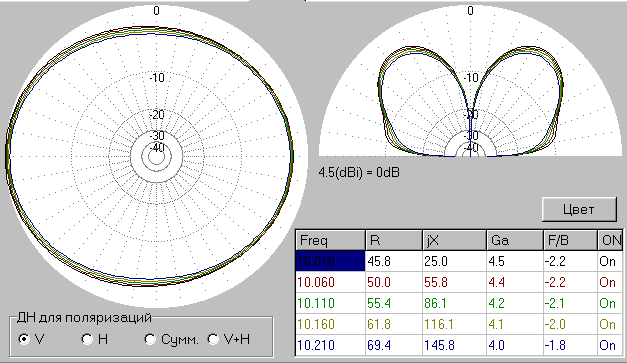

Horizon Radiation Pattern





Comments: Antenna has strong vertical radiation. Not bad pattern in the vertical plane. Antenna has strong radiation at high corners that allows to do local QSOs. Antenna has almost circular pattern in horizontal plane. Antenna provides DX and local QSOs. Antenna has Z= 55+ j86-Ohms at 1010-kHz. Any ATU does good matching for such load.
