HF Helical Antennas: Theory and Practice





Measurement of the Resonance Frequency of Helical Antenna with GDO



Figure 6 shows the method of measuring the resonance frequency of a dipole helical antenna. Figure 7 shows the method of measuring the resonance frequency of a vertical helical antenna.

The helical antenna was coupled with GDO with 1 to 3 turns (it was found best coupling by experiment) of stranded wire. Distance between the coil and the GDO coil was minimal for the GDO could fix the resonance frequency.

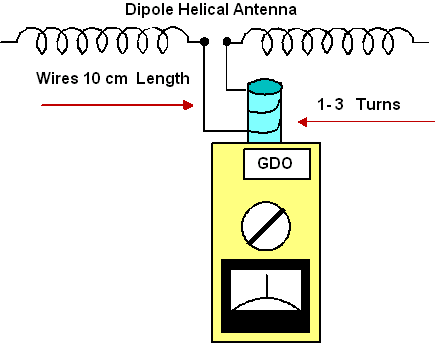

Figure 6 Method of Measuring the Resonance Frequency of a Dipole Helical Antenna







Figure 7 Method of Measuring the Resonance Frequency of a Vertical Helical Antenna
