Antenna with Rotating Directional Pattern for the 80, 40, 20, 14 and 10 meter Band

Of course, for such rework you should have proper butterfly capacitor. Lots of Soviet amateurs make the capacitor from some drawing as a home brew project.

I had several drawing for the home made capacitor but alas I lost them while moving to Canada.

Figure 4

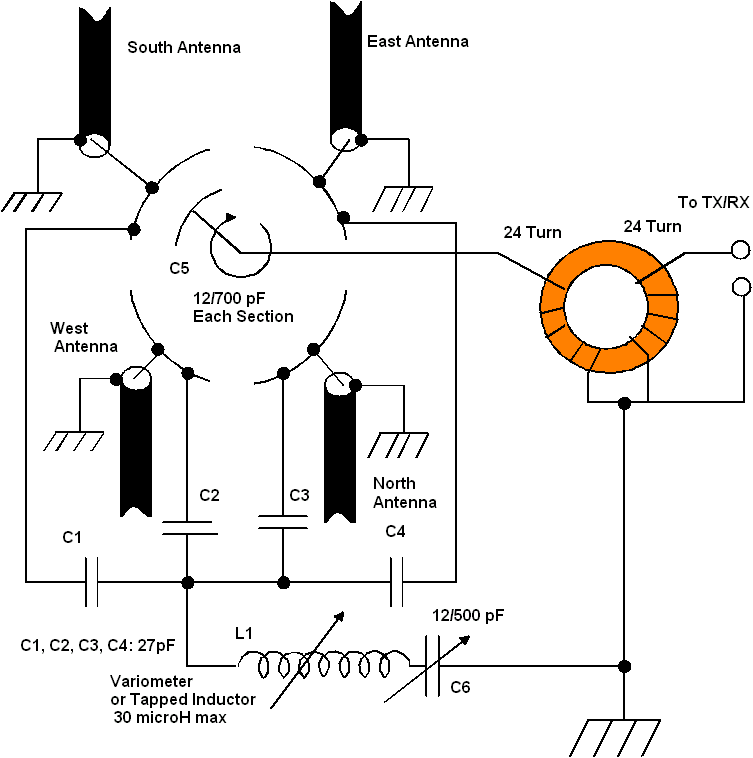

Schematic of the ATU for Antenna with Rotating Directional Pattern for the 80, 40, 20, 14 and 10 meter Band
