Shunt Vertical Universal HF Antenna



Shunt Vertical Universal HF Antenna at 160-m

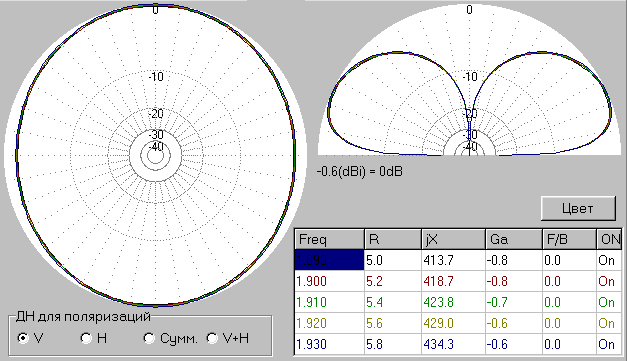

Vertical Radiation Pattern

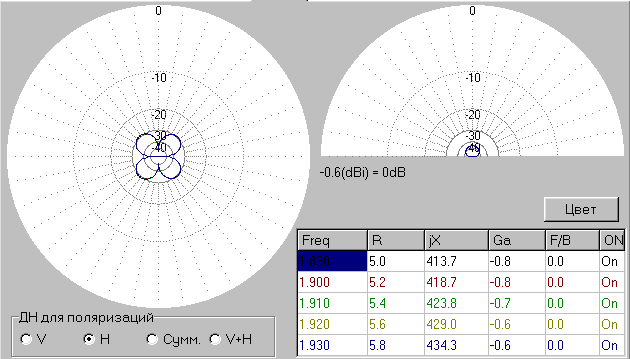

Horizon Radiation Pattern











Comments: Antenna radiates radio waves with vertical polarization. A very good pattern with low lobes in the vertical plane. Circular pattern in horizontal plane. It is fine for DX- QSO. But antenna has Z= 5.4+ j423-Ohms at 1910-kHz. Not all ATUs do good matching for such load.
