Shunt Vertical Universal HF Antenna

Custom Search


ANTENTOP- 02- 2004, # 006

Shunt Vertical Universal HF Antenna


Shunt Vertical Universal HF Antenna at 80-m

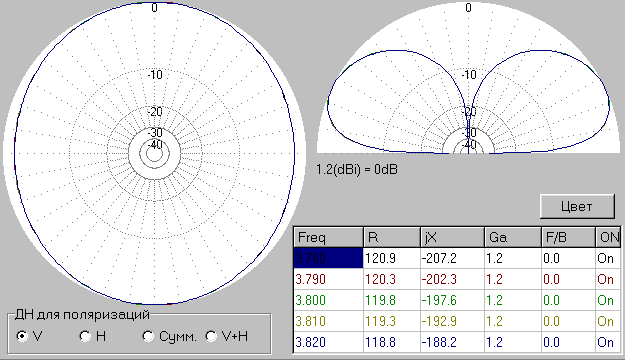

Vertical Radiation Pattern



Horizon Radiation Pattern






Comments: Antenna radiates radio waves with vertical polarization. A very good pattern with low lobes in the vertical plane. Circular pattern in horizontal plane. It is fine for DX- QSO. Antenna has Z= 119- j197-Ohms at 3800-kHz. Almost any ATU does good matching for such load.
