Shunt Vertical Universal HF Antenna


Shunt Vertical Universal HF Antenna at 12-m

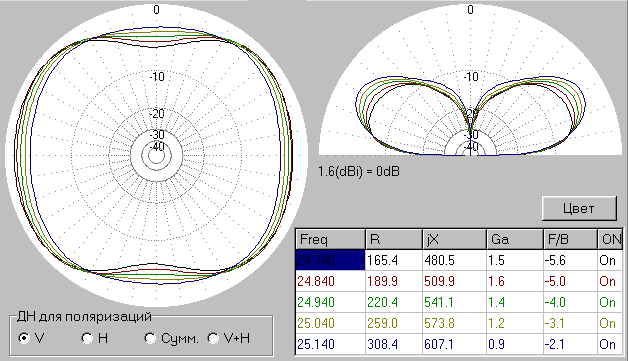

Vertical Radiation Pattern



Horizon Radiation Pattern





Comments: Antenna has strong vertical radiation. A good pattern in the vertical plane. Antenna has almost circular pattern in horizontal plane. Antenna provides DX QSOs. Antenna has Z= 259- j573-Ohms at 25040-kHz. Not all ATUs do good matching for such load.
