Shunt Vertical Universal HF Antenna



Shunt Vertical Universal HF Antenna at 30-m

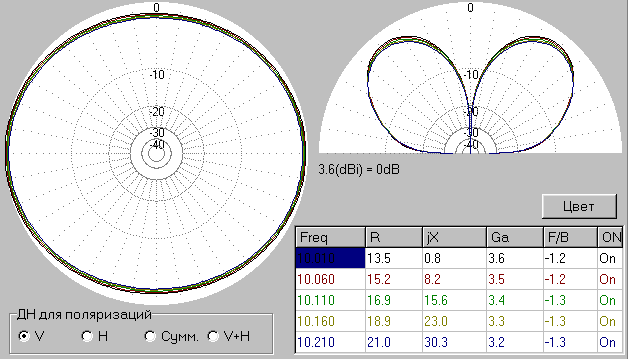

Vertical Radiation Pattern

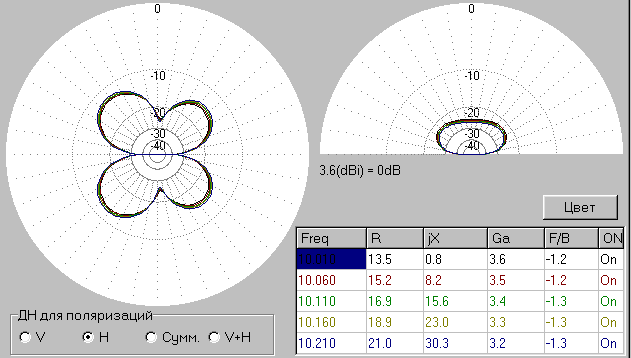

Horizon Radiation Pattern









Comments: Antenna has strong vertical radiation. A good pattern in the vertical plane. Antenna has strong radiation at high corners that allows to do local QSOs. Antenna has almost circular pattern in horizontal plane. Antenna provides DX and local QSOs. Antenna has Z= 16.9+ j15.6-Ohms at 10110-kHz. Any ATU does good matching for such load.
